Google

Configure XEIZE OIDC SSO with Google as the identity provider.

1. Create an OAuth client

Sign in to Google Cloud Console and open APIs & Services > Credentials from the left sidebar.

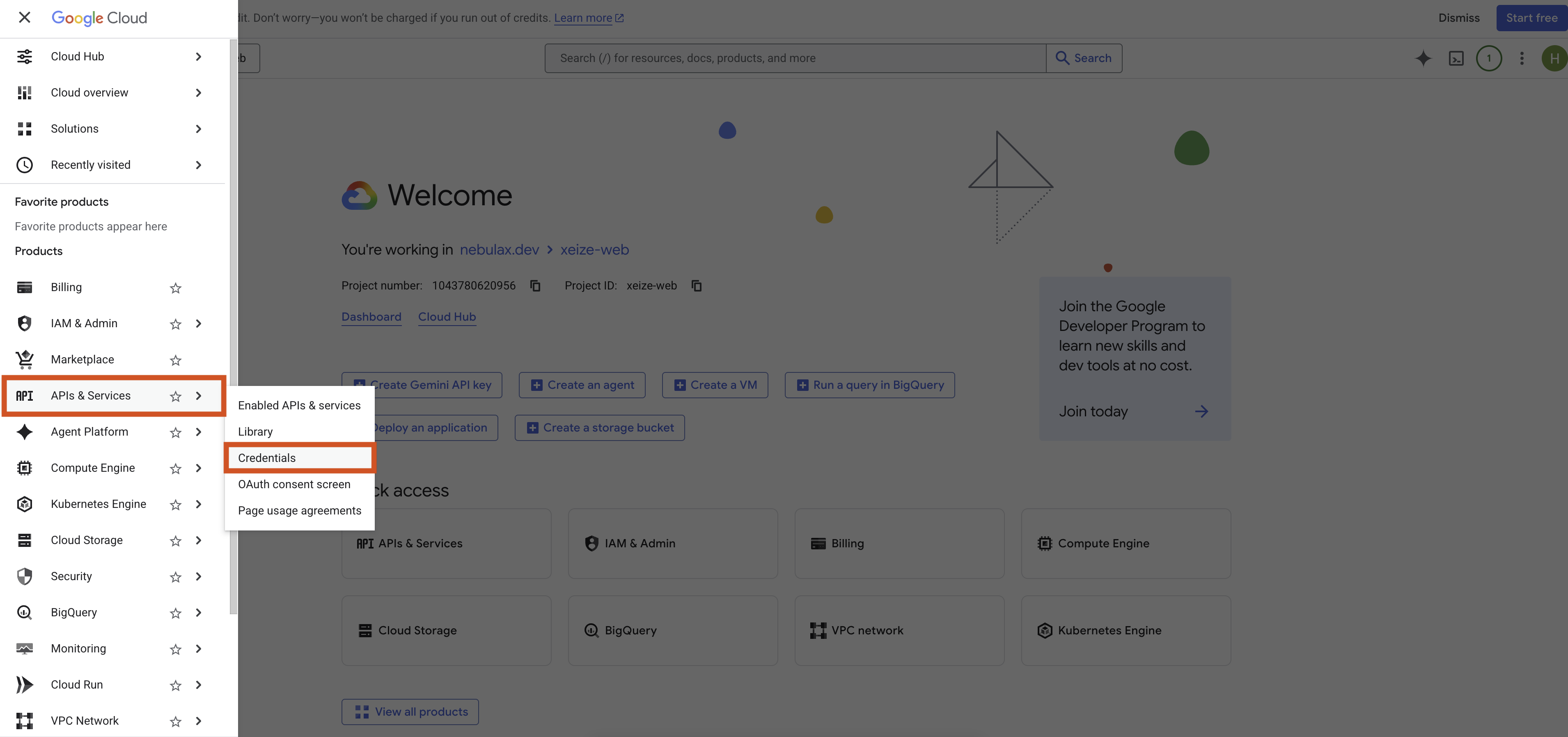

Credentials page in Google Cloud Console

Click Create credentials > OAuth client ID to start creating the application.

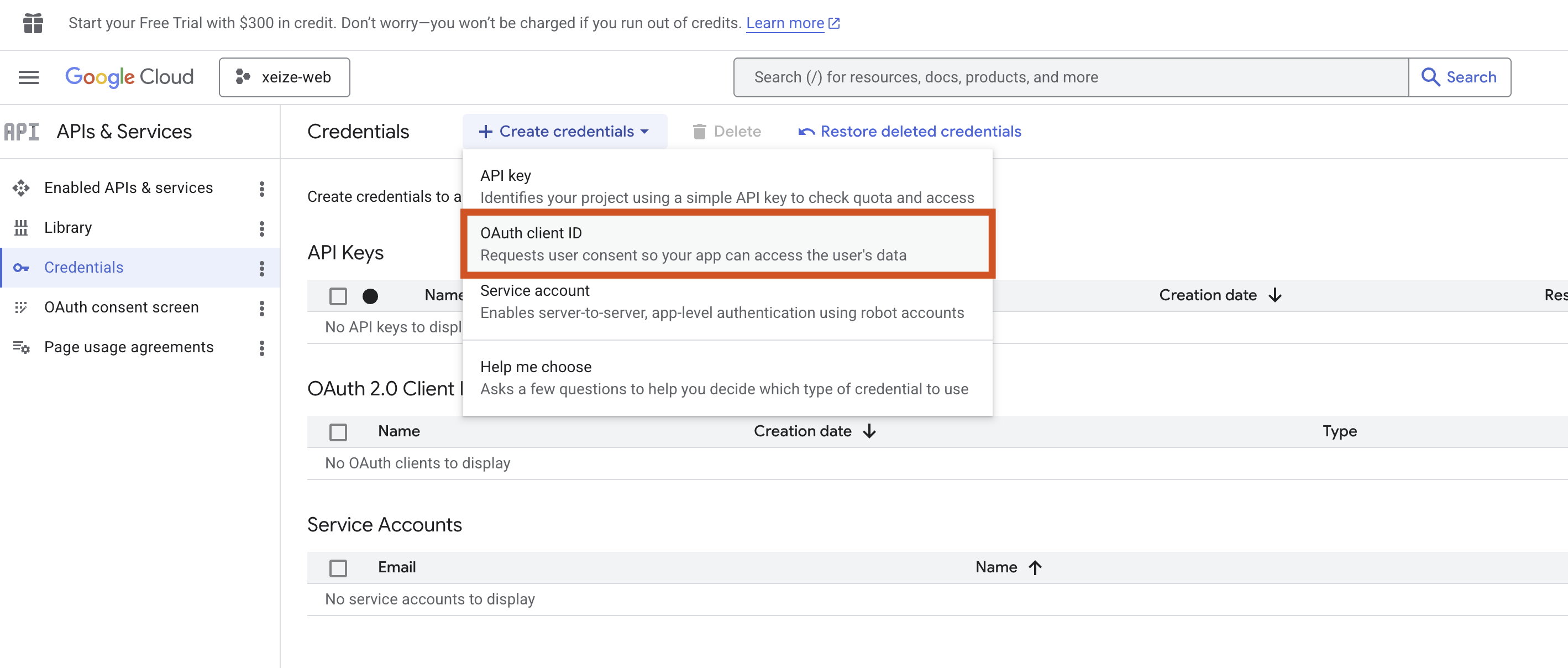

OAuth client ID option in the Create credentials menu

2. Find the XEIZE OIDC information

In the XEIZE SSO integration settings, find and copy OIDC 리디렉션 URI (OIDC redirect URI).

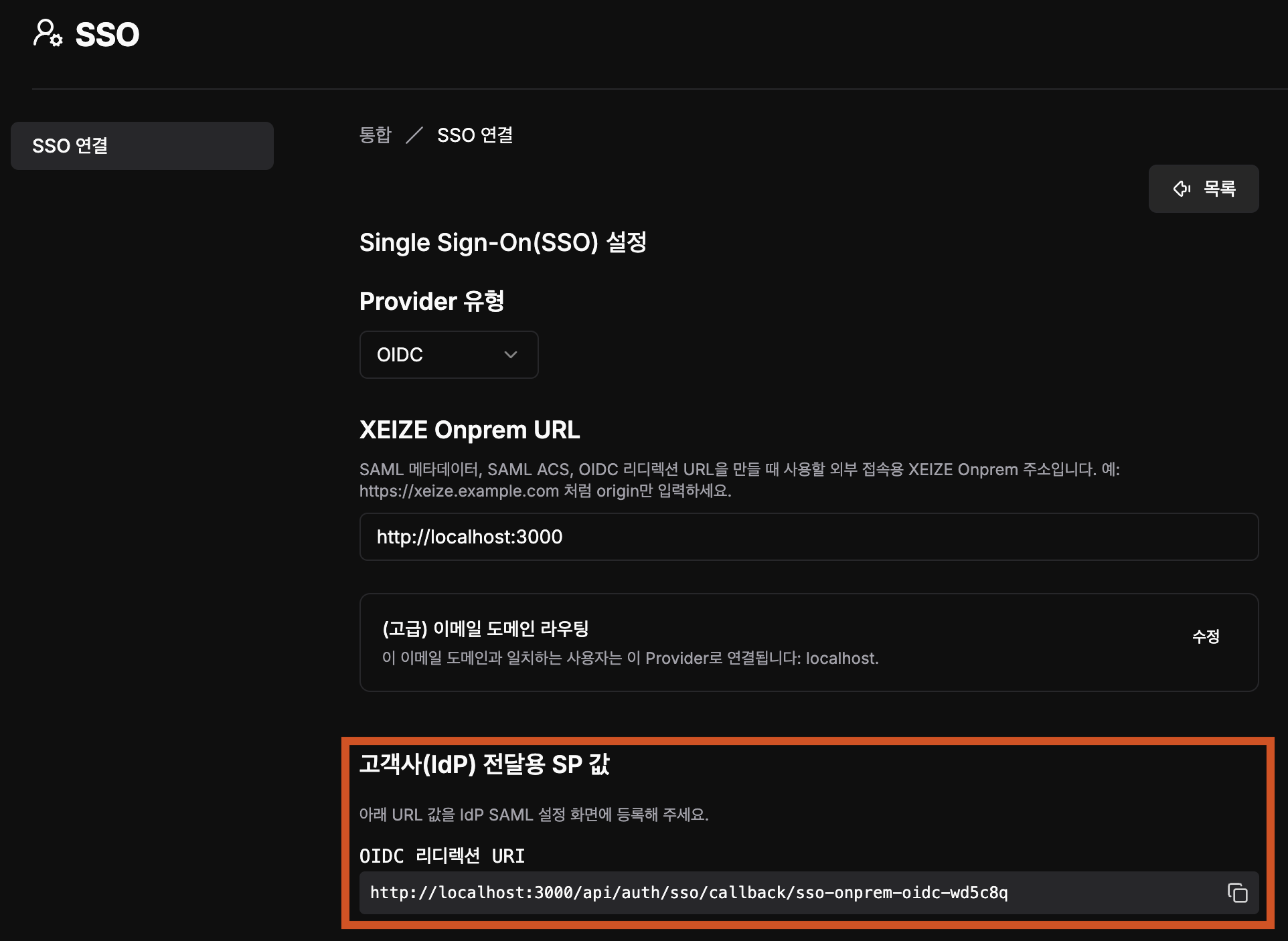

OIDC redirect URI in the XEIZE SSO settings

3. Configure the Google OAuth client

Enter the values copied from XEIZE in the Google OAuth client settings.

Google setting Value
Application type Web application
Name The application name to use for XEIZE
Authorized redirect URIs The OIDC redirect URI

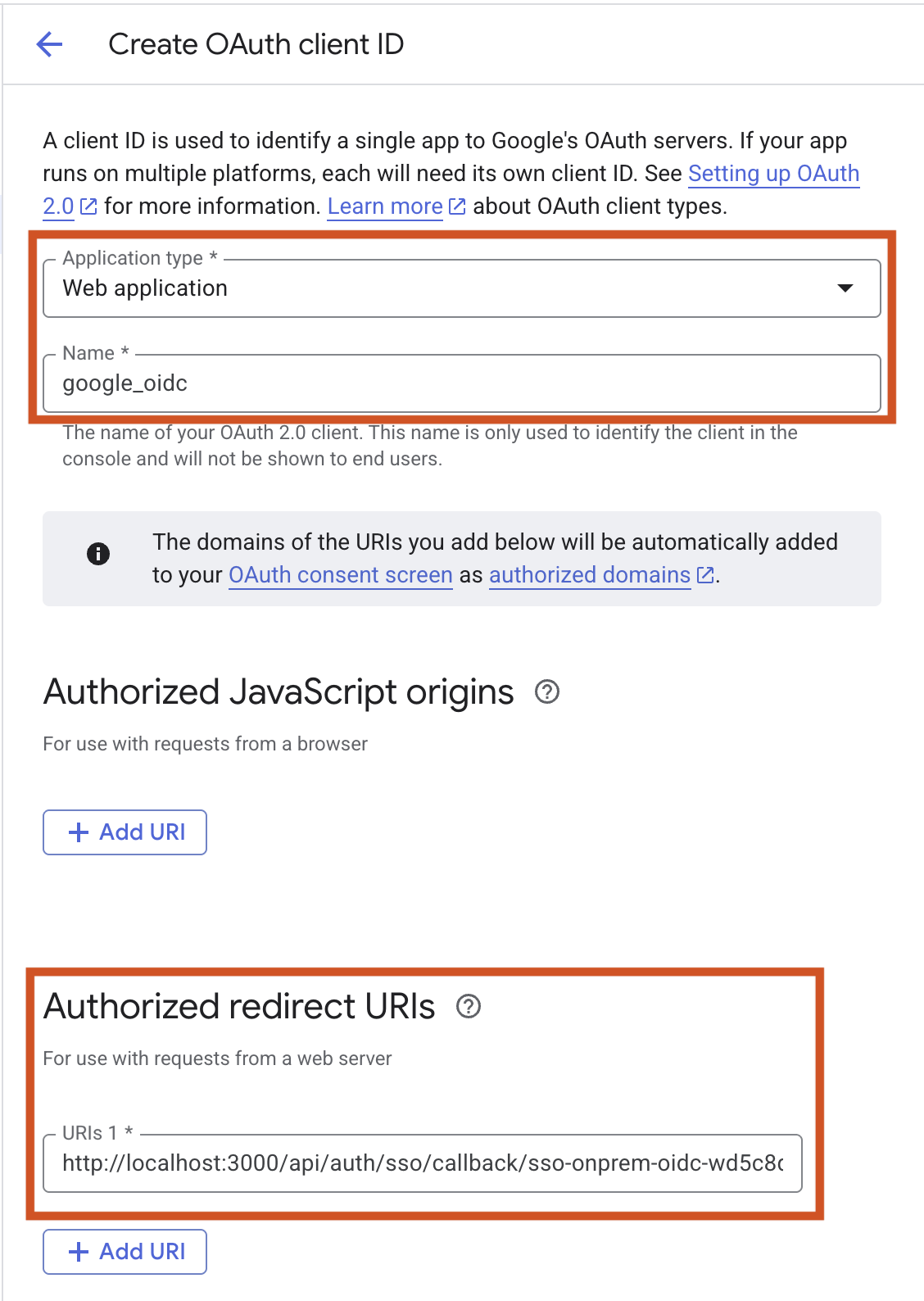

Google OAuth client application type and redirect URI settings

Click Create after entering the values.

4. Configure OIDC in XEIZE

Copy the new OAuth client’s Client ID and Client Secret from Google Console.

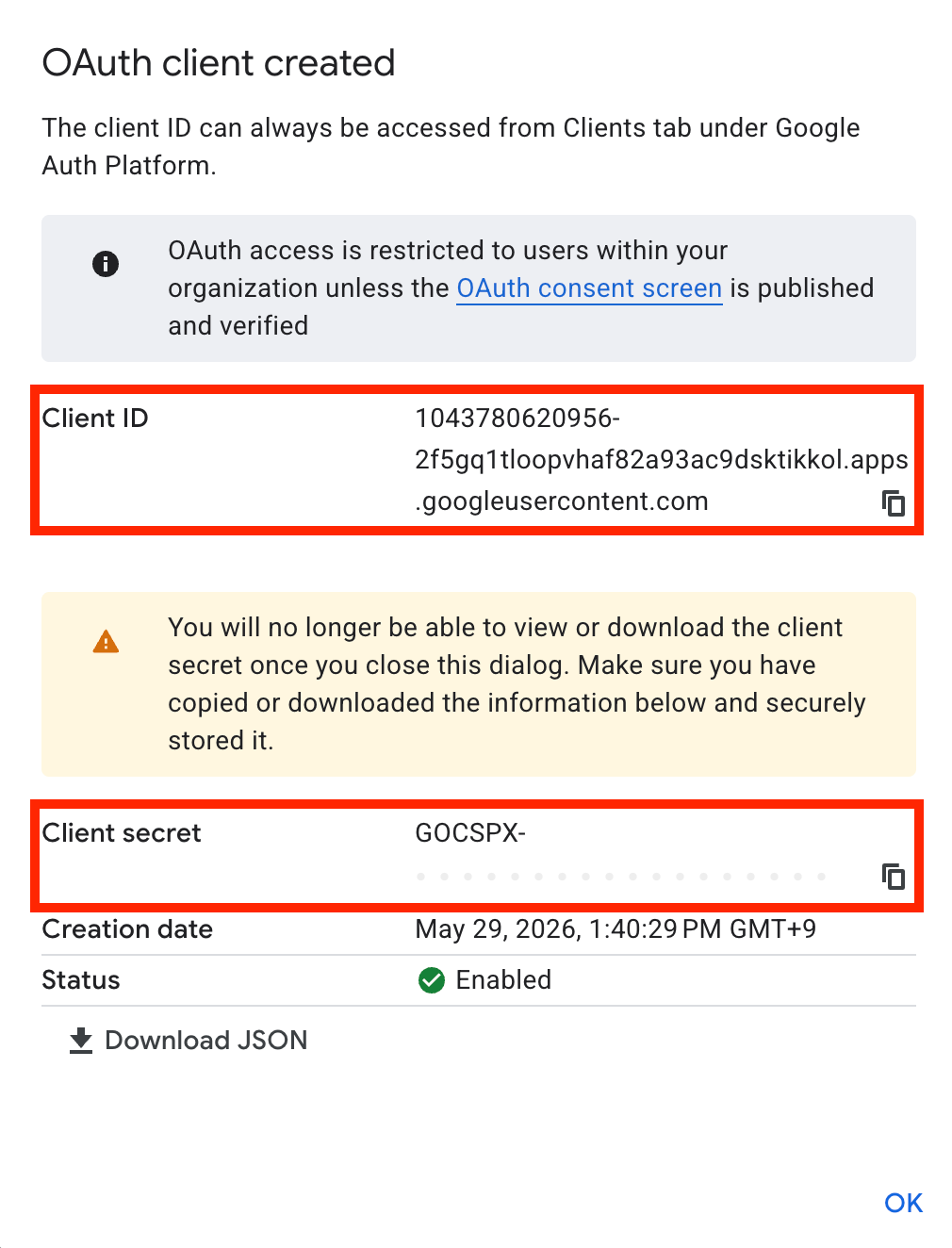

Client ID and client secret for the created Google OAuth client

Enter them in 클라이언트 ID (client ID) and 클라이언트 암호 (Secret) (client secret) in the XEIZE SSO integration settings.

Select Google (고정값) (fixed values) in the OIDC preset selector. Keep Google’s fixed values unchanged.

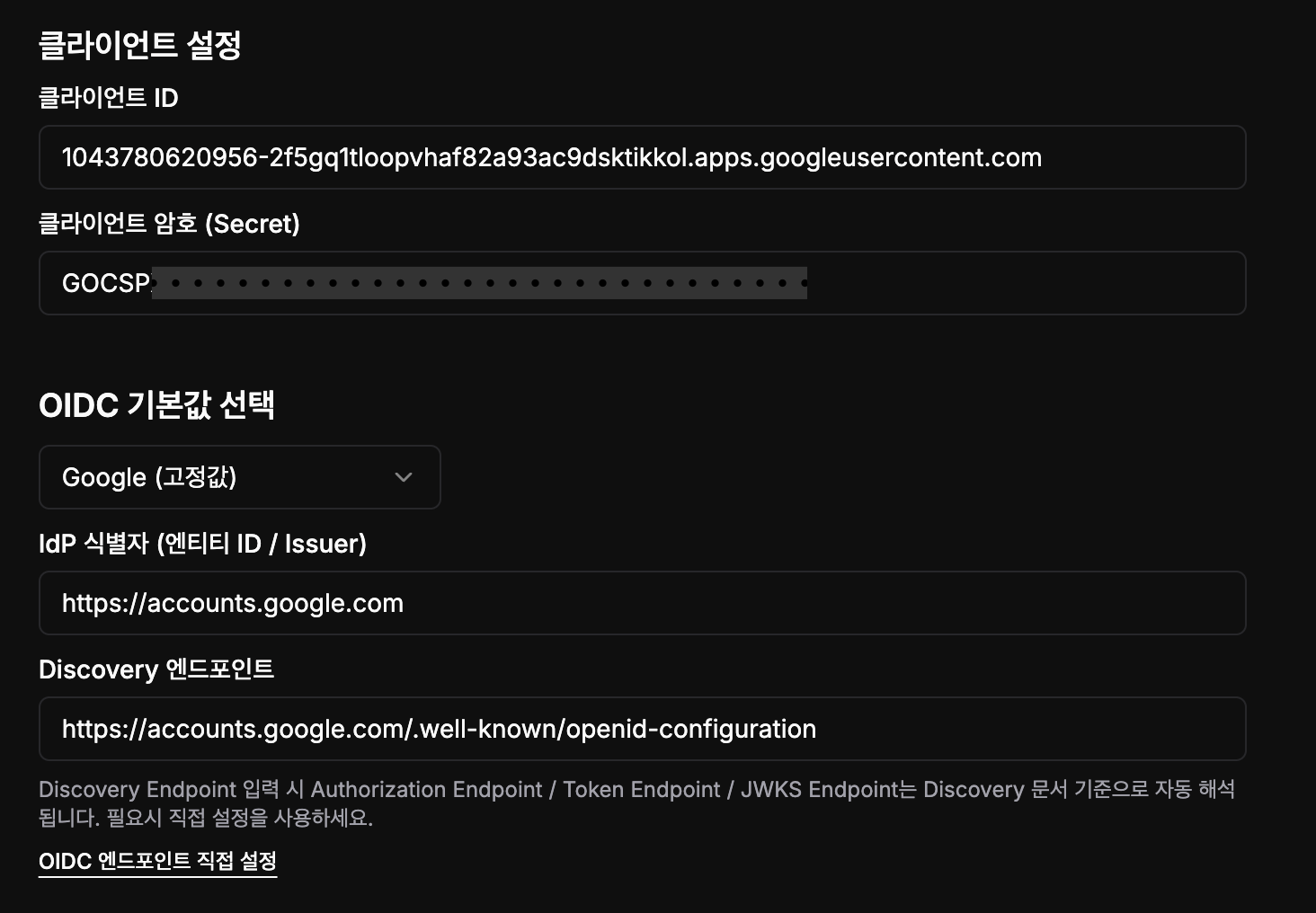

Google preset and client credentials in the XEIZE OIDC settings

5. Test sign-in

After completing the setup, check that SSO sign-in works.

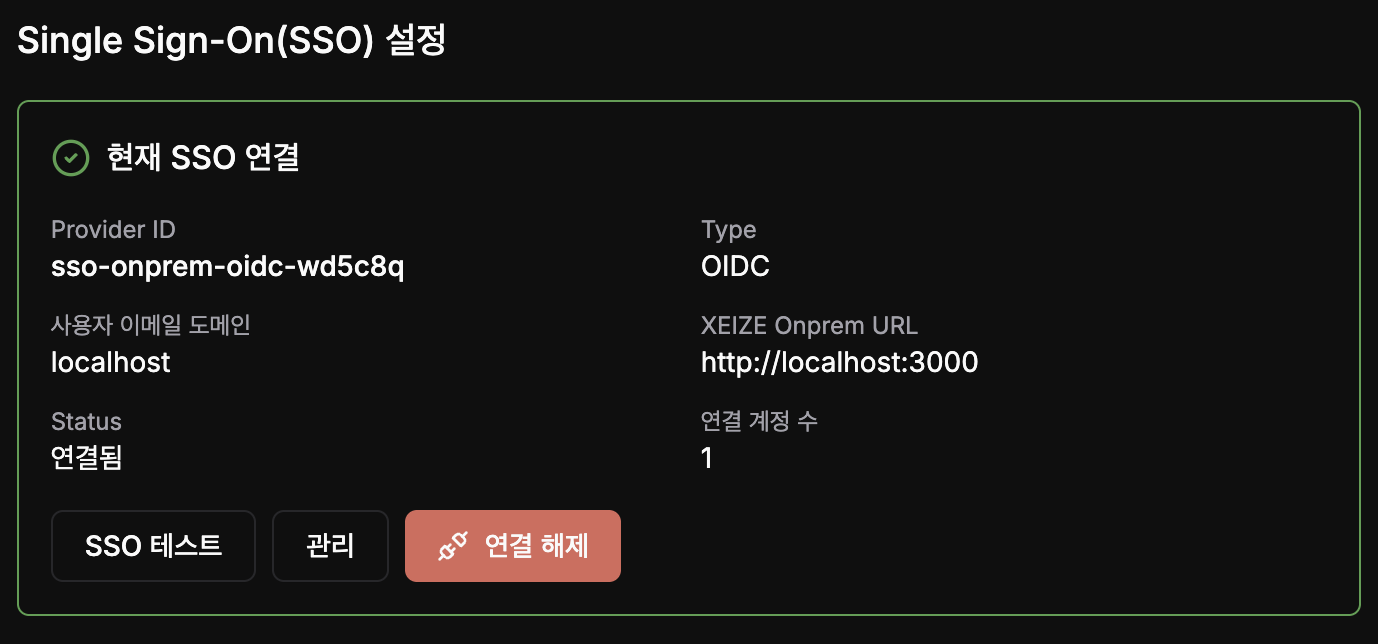

Testing Google SSO sign-in with XEIZE

Reference

If SSO sign-in does not work, check the following:

  • The Google OAuth client’s Authorized redirect URIs must match the XEIZE OIDC redirect URI.
  • Verify the client ID and client secret entered in XEIZE.
  • Check that the user’s email address or identifier matches their XEIZE account information.

For more information about Google OIDC, see OpenID Connect.
